| Operation Mode: | Asynchronous/Synchronous simplex or full duplex. |
| Input/Output Interface: | RS-232-C, Type D at 0 to 19.2 kbps. |
| Phase Distortion: | Less than 12.5% |
| RTS/CTS Delay Time: | 0 |
| Number of Channels: | 8 |
| Optical Power into a 50 Micron core Optical Fiber: | 10 µw |
| Transmission Wavelength: | 820 nanometers (1300 nm option) |
| Receiver Sensitivity: | 1 microwatts at less than 10-9 bit error rate |
| Optical Connector: | ST standard (SMA optional) |
| Operating Temperature: | 0 °C to 50 °C |
| Input Power: | 105 to 130 VAC 60 Hz, 50 W Power transformer secondary fused and operates from 50 to 520 Hz. Detachable power supply cord |
| Metal Enclosure: | 17.25" X 10" X 4.125" (43.8 X 25.4 X 10.5 cm) - rack mounting with ears |
| Weight: | 12 lbs. (5.45 Kg) |
| 230 Volt Version: | Model 2006V |
| National stock No. 6008-01-365-1380 JZ | |

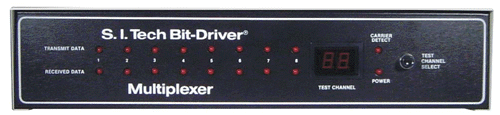

2006 - Fiber Optic Bit-Driver® Multiplexer
S.I Tech Model 2006 Bit-Driver multiplexer is ideal for in-house data transmission where you have
clustered terminal situations. It delivers eight full duplex ports capable of moving up to 19.2 Kbps in either
synchronous or asynchronous modes, without using flow control or buffering techniques, resulting in absolute
minimum throughput delay. Aggregate speed is 160 Kbps. Each port on the multiplexer is fully independent, allowing
mode (synchronous or asynchronous) mixing. There are five switch-selectable, synchronous data rates per channel.
Model 2006 is an eight channel time division multiplexer, providing eight Bit-Driver links using one optical cable interface. Fiber optic cable offers complete immunity to EMI/RFI interference problems for secure data transmission in noisy environments.
Status indicators show the activity of each channel and the integrity of the link. If a problem develops, you can select a digital loopback for any channel at both ends of the link without interrupting the data flow on the other seven channels. If transmission line problems are suspected, an analog loopback can be selected and the cable will be included in the test loop. Operating distance is 6600 feet (2 Km), 5 Km option.
Model 2006 is an eight channel time division multiplexer, providing eight Bit-Driver links using one optical cable interface. Fiber optic cable offers complete immunity to EMI/RFI interference problems for secure data transmission in noisy environments.
Status indicators show the activity of each channel and the integrity of the link. If a problem develops, you can select a digital loopback for any channel at both ends of the link without interrupting the data flow on the other seven channels. If transmission line problems are suspected, an analog loopback can be selected and the cable will be included in the test loop. Operating distance is 6600 feet (2 Km), 5 Km option.
UL Listed. Meets FCC requirements of Class A, Part 15 Computing Devices Standard.
Specifications subject to change without notice.
