Model 2509 - CCTV - Mini Fiber Optic Video Transmitter
System Bandwidth:
10 Hz to 15 MHz
Transmitter Input Impedance:
75 ohms, BNC bulkhead jack
Input Voltage:
1 Vpp
Receiver Adjustment Range:
40:1
Linearity:
1 percent typical
Output Load Impedance:
75 ohms
Output Voltage:
2 Vpp into 75 ohm load
Operating Wavelength:
820 nanometers* (1310 nm options)
Optical Connectors:
ST
Power Requirements:
12 volt from camera or external power supply (S.I.Tech #2121)
Operating Temperature:
0°C to 50°C
Dimensions:
1.50" X 1.13" X 0.88"
Weight:
0.1 LB (45 grams)
*1310 nanometers is an option for long distance mm or sm fiber

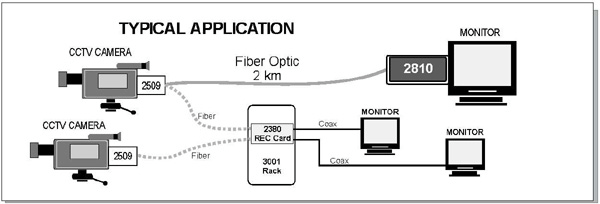

Model 2509 is a miniature fiber optic transmitter that attaches directly to a CCTV camera. Power
can come from the camera or an optional power supply. (Model 2121)
The Mini 2509 is compatible with 2809/2810 and also with CCTV transmitter/receiver cards in series 1000 and 3001 rack.
